PRODUCT / SB-75CNC
Fully Automatic Tube BendersSB-75CNC

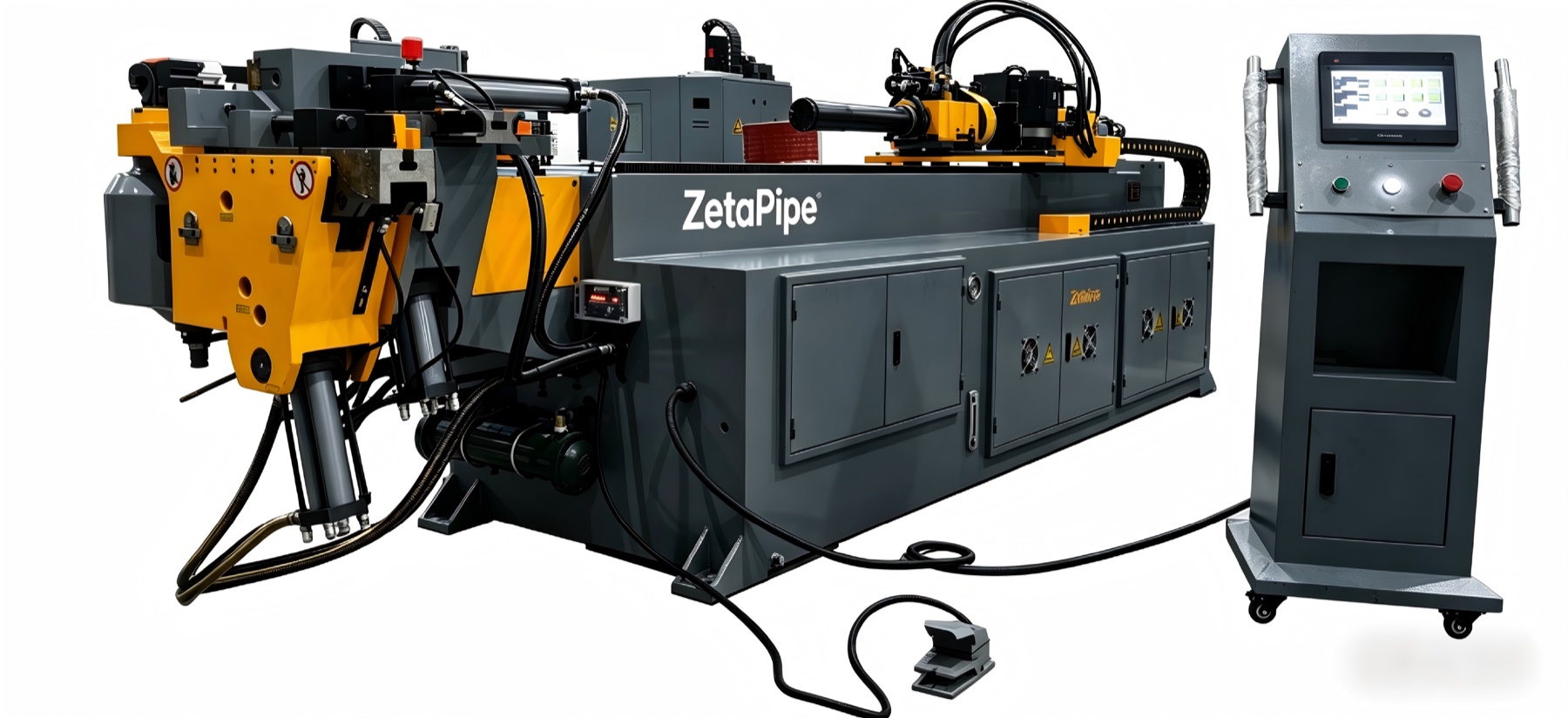

SB-75CNC
SB-75CNC fully automatic CNC tube bender for stable, precise batch forming, with a configuration tailored to the workpiece.
- Automatic feeding, rotation and bending
- CNC program control
- Custom tooling and configuration
TECHNICAL DATA
Core specifications
Final specifications and configuration are determined by your part geometry, material, process and output requirements.
- Maximum bending capacity
- Φ75 × 4 mm
- Mandrel length
- 4200 mm
- Bending speed
- 100°/s
- Feeding speed
- 500 mm/s
- Rotating speed
- 180°/s
- Bending / feeding / rotation accuracy
- ±0.1° / ±0.05 mm / ±0.05°
- Maximum bending angle
- 195°
Typical applications
Furniture and fitness equipment
Industrial piping
